Products
IoT Solutions

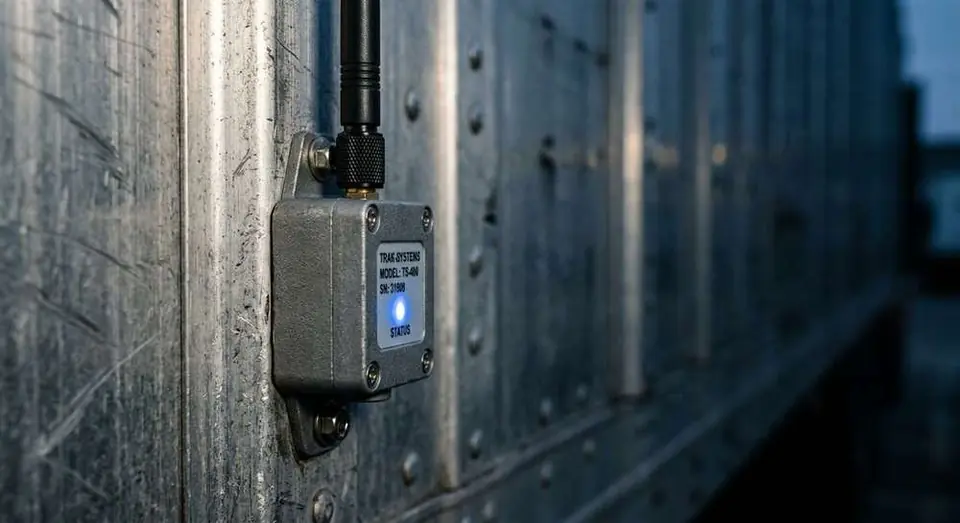

Industrial transceivers and sensor devices that capture condition and location data at the asset and deliver it to the cloud, where it can be read by ORION applications or by third-party systems via API.
Multi-Radio Transceiver · 016-MR

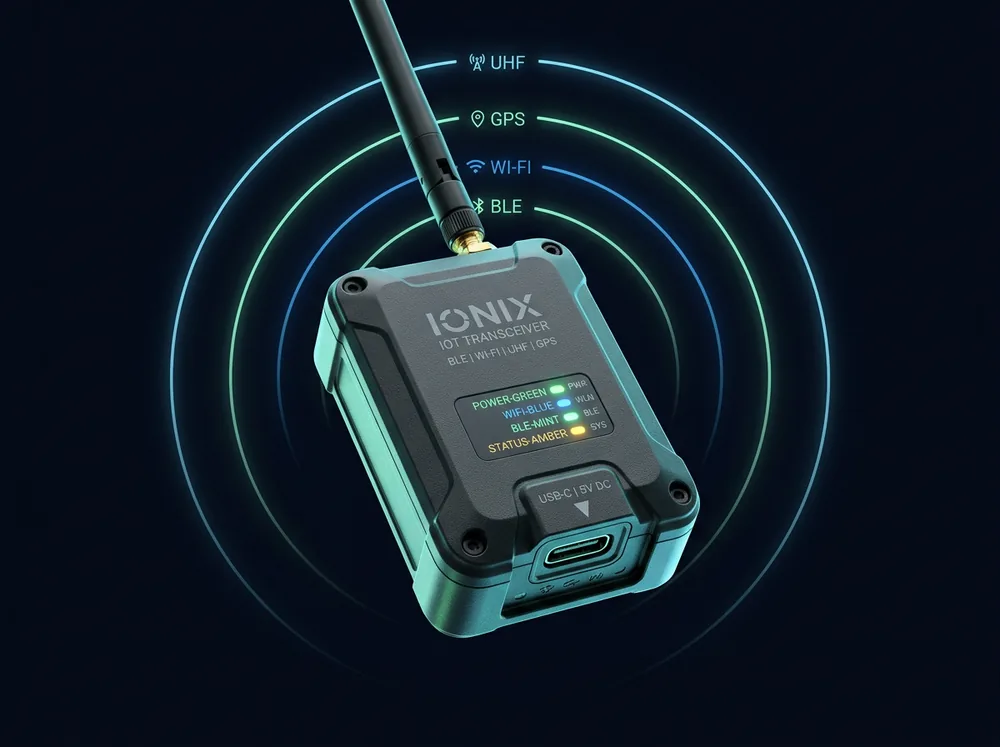

Multi-Radio IoT Transceiver (XCOM5G)
XCOM5G provides multi-radio wireless connectivity — BLE, Wi-Fi, UHF 915 MHz and GPS — in a rugged polycarbonate enclosure measuring 125×80×32 mm. It is compatible with the optional XSEN5G multi-sensor transceiver.
Features include a CANbus controller compatible with heavy-duty commercial vehicles, on-board data storage, an RS-232 connector, connectivity with a cloud data broker, and a removable long-range (SMA) antenna. A rechargeable 18650 Li-Ion battery and an external USB-C port support recharging or continuous operation. Each unit includes a single-user licence for ORION SensorMate™ for easy configuration and programming.
Connectivity & Features
Cellular Transceiver · 017-CELL

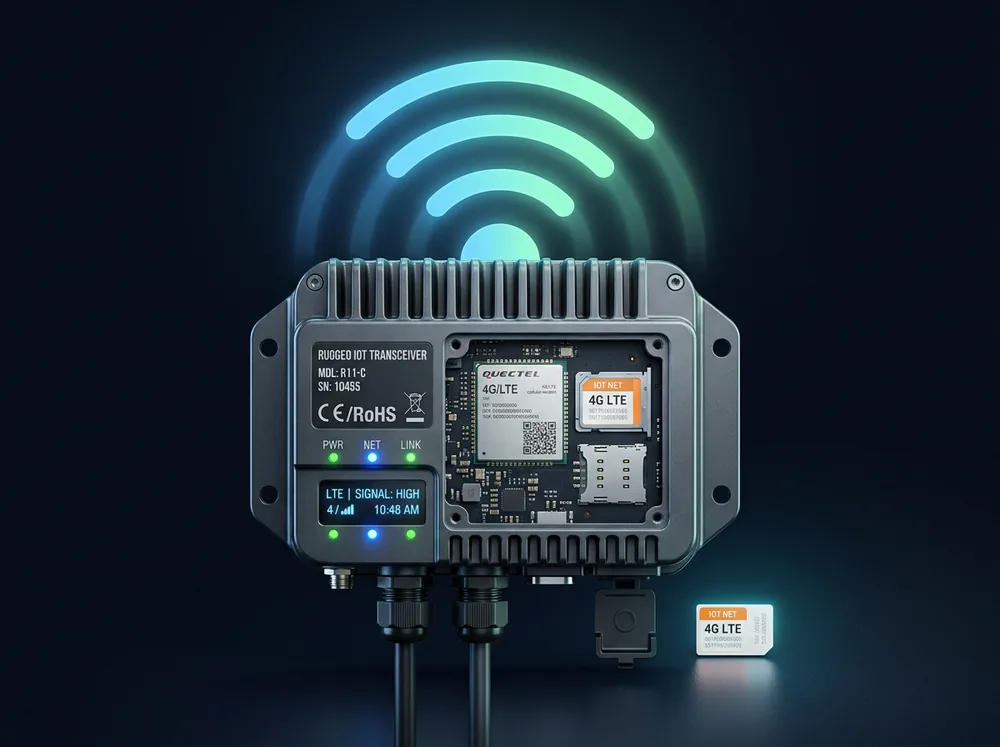

XCOM5G with Cellular (XCOM5GC)
XCOM5GC is identical to XCOM5G but adds an internal cellular modem. Because the modem is internal, no additional external antenna is required for cellular connectivity.
The unit ships complete with a SIM card and roaming data service, including a monthly data allowance of 2 MB for one year.
Multi-Sensor Transceiver · 018-MS

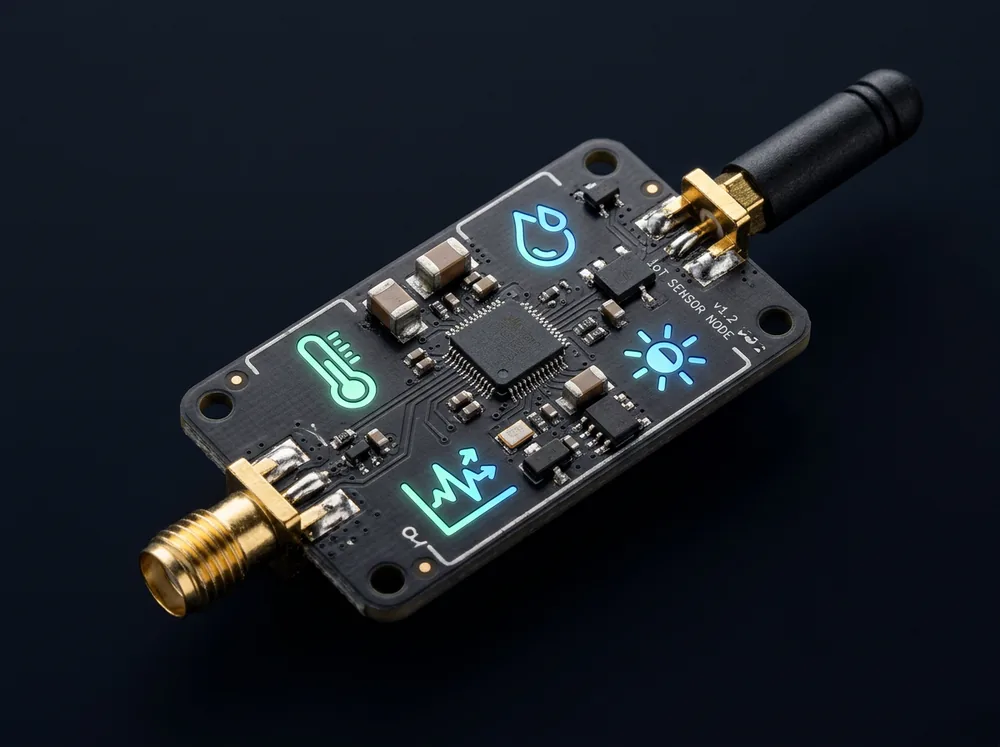

IoT Multi-Sensor Transceiver (XSEN5G)
XSEN5G is an advanced, sustainable IoT device measuring just 49×27×14 mm, with a suite of on-board PCB sensors covering temperature, humidity, pressure, vibration, acceleration, deceleration, sound and light.
It also offers analog and digital inputs and outputs supporting over 2,000 third-party wired sensors to meet the most demanding monitoring and reporting requirements. Powered by an included rechargeable 18650 battery, it ships with a removable long-range SMA antenna that maintains connectivity through weather, urban environments, industrial complexes, manufacturing facilities, office buildings and wooded areas. XSEN5G is compatible with XCOM5G and XCOM5GC.
On-board Sensing & I/O
Variant Comparison
| Specification | XCOM5G | XCOM5GC |
|---|---|---|
| Catalog ID | 016-MR | 017-CELL |
| BLE, Wi-Fi, UHF 915MHz, GPS | Included | Included |
| Cellular modem | Not fitted | Internal |
| External antenna | Removable SMA long-range | Not required |
| SIM and roaming data | Not included | Included, 2MB per month for one year |
| CANbus controller | Heavy-duty commercial vehicle | Heavy-duty commercial vehicle |
| Enclosure | Polycarbonate, 125 × 80 × 32 mm | Polycarbonate, 125 × 80 × 32 mm |
| Power | Li-Ion 18650, USB-C | Li-Ion 18650, USB-C |
| Included licence | Single user, ORION SensorMate™ | Single user, ORION SensorMate™ |
